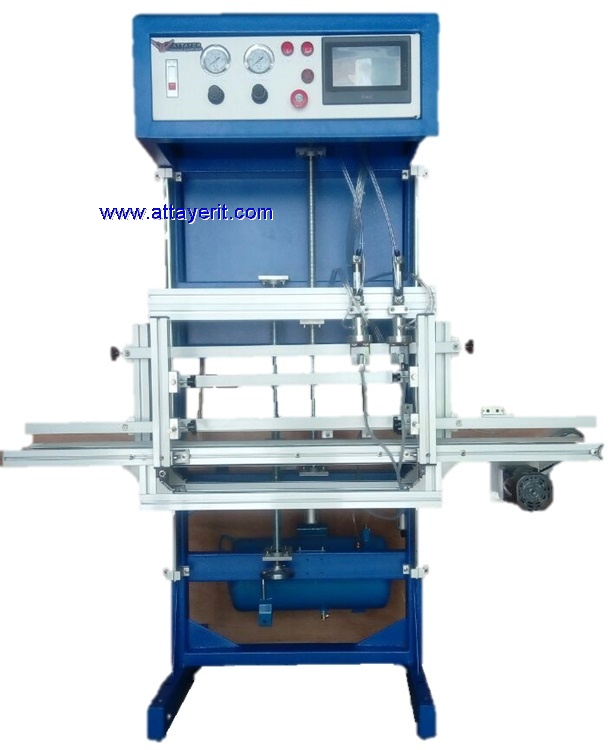

Double Head Full Automatic Bottle Leak Testing Machine

Double Head Full Automatic Bottle Leak Detector

AIT-FA-LT1200 Double Head Leak Tester from Attayer offers high accuracy while keeping costs low. To ensure that empty plastic bottles don’t leak, blow molders and injection molders rely on our bottle leak testers. It offers a reliable and cost effective leak detection solution, particularly to small manufacturers and startups.



Benefits of AIT-FA-LT1200 Bottle Leak Tester

• Color touch screen interface: Simple, efficient, and modern user interface
• Multi-strand conveyor: Low cost and simple conveying approach
• Painted steel frame: Rugged and durable construction, designed to last
• Recipe storage for leak test settings: Quick and repeatable changeover of test settings
• Dual-level conveyor rails: Ensures stability for larger containers
• Gate cylinder: Provides ability to regulate bottles into the testing area, if needed
• Stop cylinder: Provides ability to positively stop bottles in the testing area, if needed

Plastic Bottle Leak Detector Specs

Compact structure, simple and flexible to operate, running stably and energy-saving In accordance with different requirements, the testing heads installation can be vertical and oblique to meet the needs of different products.

The integrated strand conveyor, designed for end-to-end transfer of bottles from the production line, operates continuously at a fixed speed.  When the test probe force is applied to the bottle vertically, the strands that are traveling underneath the container are pressed into machined grooves, providing a sturdy base for the containers.

The bottle leak tester machine performs a sensitive leak test with capabilities typically between 0.004” to 0.020” diameter hole size detection depending upon the container size, volume, and required testing rate.


• Model: AIT-FA-LT1200
• Detectable volume: 5L-30L
• Production speed: 800-1800 bottles/hour, depending upon the container size and testing requirements.
• Conveyor length: 1500mm
• Dimensions (L x W x H): size: 1.5 x  0.5 x 1.7(m)
• Conveyor height adjustment capacity: 750mm-1000mm
• Especially designed for high-volume bottles by Adopting reduction voltage circuit design to meet the needs of different requirements.

Scalable Solution for Growing Operations

As your business grows and you begin to add additional or split off production lines, you may need to increase your leak detection capacity. One option is to bring in additional full automatic leak testers to run on your new lines, doubling or tripling capacity without affecting space. If you need other bottle testing solutions with lower speed and higher cost efficiency you can check the Single Head Full Automatic Bottle Leak Testing Machine or even other capacities, which we can provide according to your requirements.



Installation & Training

Our team of seasoned service engineers will visit your site to install your bottle leak detector. Though installing a leak detector does interrupt production, we aim to minimize downtime as much as possible. After installation, we can train your technicians on the equipment, eliminating any confusion or guesswork that can come with new machinery.



Other Leak Testers

Learn about other plastic bottle leak detectors form AIT:

• Single Head Full Automatic Bottle Leak Testing Machine

Contact Attayer International Trading Team

AIT supplies bottle leak detectors to manufacturers all over the world, in the US, Mexico, South America, Asia and beyond. For more information about our Full Automatic Low Cost Double Head Leak Tester request a quote today.
