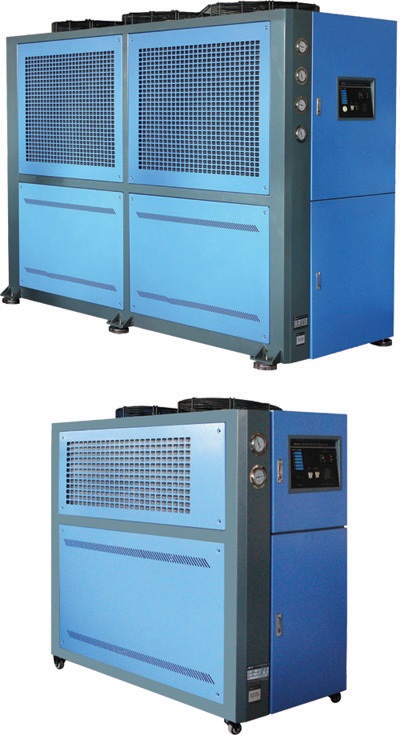

Air Cooled Industrial Chiller
Product name : Air Cooled Industrial Chiller
Model No. : AIT-12ACC
Products Category: > Industrial Chillers > ِAir Cooled
| 1.Compressor | 9.Temperature sensor |
| 2.Cooled condenser | 10.Water tank |
| 3.Drier filter | 11.Pressure gauge |
| 4.Expansion valve | 12.Pump |
| 5.Evaporator | 13.Pressure reliefe valve |
| 6.Globe valve | 14.Low pressure controller |
| 7.Antifreezing switch | 15.High pressure controller |
| 8.Float switch | 16.Fan |
Performance characteristic
*This series of machines can cool the water ranging from 5 to 35℃.
*Other cooling capacities can be also customized according to customer’s needs.
*The micro computer controls and runs the system so the temperature can be reduced to 1℃.
*The compressor and pump are equiped with an overload protection device to guarantee thier safety and prolong their service life.
*The multi protection device system (antifreeze protection,high and low pressure protection and flow protction) ensures the machine safety.
*The water tank is made from stainless steel and has a heat insulation layer.
*Freeze pipelines are wrapped with an insulation layer to improve the cooling efficiency.
* Low speed and noise blower fan.
*The blower fan stops along with the compressor, thus it is an effecive electric energy saving system.
|
Type
|
Technical Parameters of Air Cooling Industrial Chiller
|
||||||||||||||
|
Model
|
MH-2AD
|
MH-3AD
|
MH-5AD
|
MH-6AD
|
AI-8WD
|
AI-10WD
|
AI-12WD
|
AI-15WD
|
AI-20AD
|
AI-25WD
|
AI-30WD
|
AI-40WD
|
AI-50WD
|
||
|
Nominal output
|
50HZ
|
Btu/h
|
21560
|
28541
|
36427
|
48820
|
66095
|
80365
|
94636
|
121181
|
189272
|
228704
|
252363
|
378544
|
457408
|
|
Kw
|
6.36
|
8.36
|
10.67
|
14.3
|
19.36
|
23.54
|
27.72
|
36.96
|
55.44
|
66.99
|
74.9
|
110.88
|
133.98
|
||
|
Kcal/h
|
5433
|
7188
|
9175
|
12296
|
16647
|
20241
|
23835
|
31780
|
47670
|
57601
|
63560
|
95340
|
115202
|
||
|
USRT
|
1.8 |
2.5
|
3.0
|
4.0
|
5.5
|
6.7
|
7.9
|
7.9
|
15.8
|
19.0
|
21.0
|
31.0
|
38.0
|
||
|
Power input
|
220V/50Hz
|
380-415V/3PHASE/52HZ
|
|||||||||||||
|
Compressor Power
|
Kw
|
1.82
|
2.5
|
3.58
|
4.56 |
5.85 |
7.38
|
8.2
|
11.84
|
7.38*2
|
8.85*2
|
11.84*2
|
15.02*2
|
18.8*2
|
|
|
Flow regulator
|
Capillary vessel/Thermo expension valve
|
||||||||||||||
|
Refrigerant
|
R22
|
||||||||||||||
|
Style
|
Highly effective red copper ripe socket string aluminum wing piece+low nose axial fan
|
||||||||||||||
|
Fan Power
|
KW
|
0.25
|
0.35
|
0.2*2
|
0.25*2
|
0.35*2
|
0.45*2
|
0.5*2
|
0.5*2
|
0.5*3
|
0.5*3
|
0.6*3
|
0.5*6
|
0.5*6
|
|
|
Evaporator
|
Style
|
Water tank type/Hub pipe type
|
|||||||||||||
|
Water tank capacity
|
L
|
50
|
50
|
55
|
75
|
145
|
210
|
210
|
360
|
510
|
510
|
510
|
600
|
780
|
|
|
Standard freezing water flow
|
m3/h
|
1.04
|
1.44
|
1.84
|
2.46
|
3.33
|
3.58
|
4.77
|
6.37
|
9.55
|
11.54
|
12.73
|
19.10
|
23.08
|
|
|
Diameter of standard nipple
|
DN
|
25
|
25
|
32
|
32
|
40
|
40
|
40
|
40
|
50
|
65
|
65
|
80
|
80
|
|
|
Built-in pump
|
Horsepower
|
HP
|
0.5
|
0.5
|
1
|
1
|
1
|
1.5
|
1.5
|
2
|
2
|
3
|
3
|
5
|
5
|
|
Machine weight
|
Weight |
KG
|
102
|
150
|
176
|
260
|
320
|
380
|
410
|
710
|
830
|
1200
|
1400
|
1520
|
1620
|
|
Measure(mm)
|
Length
|
1000
|
1200
|
1380
|
1380
|
1580
|
1580
|
1580
|
1800
|
2000
|
2540
|
2650
|
2800
|
2800
|
|
|
Width
|
550
|
600
|
650
|
650
|
760
|
760
|
760
|
850
|
1050
|
1050
|
1155
|
1600
|
1700
|
||
|
Height
|
900
|
1230
|
1280
|
1280
|
1380
|
1380
|
1380
|
1650
|
1740
|
1900
|
1950
|
2000
|
2200
|
||
